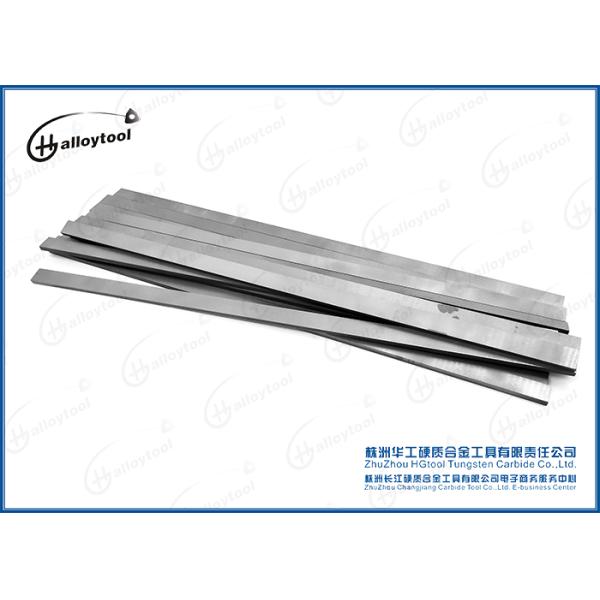

Wear Resistance Various YG8 Tungsten Carbide Strips For Non - Ferrous Metal

Name: Wear Resistance Various YG8 Tungsten Carbide Strips For Non Ferrous Metal
Brand: Halloytool
Price: 1 USD

Quality Wear Resistance Various YG8 Tungsten Carbide Strips For Non - Ferrous Metal for sale

Brand Name : Halloytool

Model Number : All

Certification : ISO9001:2008; GB/T19001-2008

Place of Origin : Hunan, China (Mainland)

MOQ : 5 kg

Payment Terms : D/P, L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 20 Ton/Tons per Month

Delivery Time : 20~30 days after your order comfirmation

Packaging Details : Plastic boxes inside and cartons outside

Product Name : tungsten carbide strip / plate

Material : 100% Virgin Tungsten Carbide

Application : Lathe and milling machine processing

Size : Standard and non-standard

Grade : K10 K20 etc.

Surface : Rough Grinding

Color : Gray

Physical Performance : High hardness, strength, wear resistance, high abrasion

Contact Now

Wear Resistance Various YG8 Tungsten Carbide Strips For Non - Ferrous Metal

Descriptions:

Tungsten carbide strip is mainly composed of tungsten carbide and cobalt powder mixed by metallurgical methods, including powder making, ball grinding, pressing and sintering. The main alloy components are WC and Co. The contents of WC and Co in tungsten carbide strip with different uses are not consistent, and the application range is wide. Cemented carbide strip is characterized by high red hardness, good weldability, high hardness and high wear resistance. It is mainly used in the manufacturing of solid wood, density board, grey cast iron, non-ferrous materials, cold hard cast iron, hardened steel, PCB and brake materials.

Hard alloy brand performance and recommendation of wear resistant materials:

Grade

Hardness
HRA

TRS
N/mm²

Density
g/cm³

Recommended Applications

YG6X

1800

14.9

It can be used for the steel wire, non-ferrous metal wire or rod die under the condition of less stress.

YG6

90.5

2000

14.9

It can be used for steel wire, non-ferrous metal and alloy bars under 20mm diameter with greater stress condition, and can also be used to pull tubing with a diameter of less than 10mm.

YG8

2200

14.7

It can be use in steel, non-ferrous metal and alloy bars and pipes, and also for manufacturing machinery parts, tools and vulnerable parts.

YG8.2

2000

14.6

YG8L

2000

14.6

YG11

88.5

2600

14.4

It can be used for high compression steel rod and steel tube drawing, working top hammer, perforation and stamping die under greater stress.

YG15

2600

YL50

2600

14.4

YG20

2800

13.6

It can be used to make punching film tools, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc.

YG20C

83.5

2800

13.6

It can be used for cold forging, cold pressing, cold pressing mould in standard parts, bearing, tool industries, etc., and is also useful in warhead and shell staming die.

TL40.5

2800

13.3

YB50

90.5

2600

It has high hardness and strength, excellent wear resistance, which can be used in the production of IC wireframe, plastic sealing film, drawing die, nozzle, ultra-thin blade, etc.

YB20

2200

14.5

It has high hardness, high strength and superior wear-resisting property, which is suitable for low, medium-speed electronic class progressive die and punch and for copper and aluminum thin sheet stamping.

FAQ

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 30 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?

A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement.

Reference Drawing

Wear Resistance Various YG8 Tungsten Carbide Strips For Non - Ferrous Metal

Products show

Wear Resistance Various YG8 Tungsten Carbide Strips For Non - Ferrous Metal
